Máy tính công nghiệp BECKHOFF-C5XXX

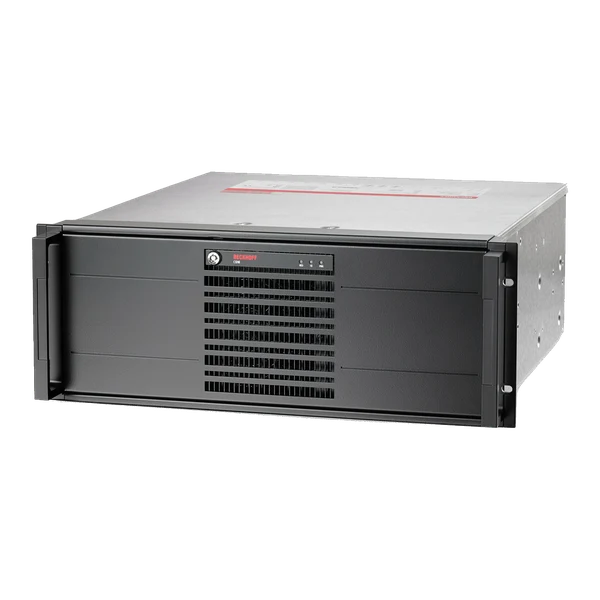

  The Industrial PCs of the series C5xxx are designed for 19-inch rack installation. They are equipped with maximum performance class components and are ideally suited for machine construction and plant engineering applications, for example with the TwinCAT automation software. The 19-inch rack mount C5102 Industrial PC, equipped with Intel® Celeron® or Core™ i3/i5/i7 on an ATX motherboard, offers maximum performance class controls. The 19-inch slide-in housing measures only four rack units, yet has plenty of internal space for expansions of any form. A CD/DVD-ROM or multi DVD drive can be fitted behind the lockable front door.

IPC247 cung cấp hàng chính hãng Beckhoff. Liên hệ IPC247 để được tư vấn cấu hình và báo giá trong 2 giờ làm việc.

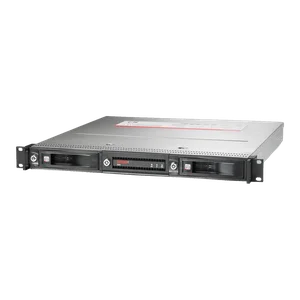

The type plate provides detailed information regarding the PC’s configuration. Carefully designed ventilation creates a slight excess pressure inside the housing, effectively preventing the entry of dust. A stable card holder generates insensitivity to shocks and vibrations. A C5102 Industrial PC and a Control Panel as its operating unit create an ideal combination. The C5210 19-inch slide-in Industrial PC measures only one height unit. This IPC has an Intel®Celeron® or Core™ i3/i5/i7 processor on a 3½-inch motherboard with on-board RAID controller and two 3½-inch hard drive removable frames. The combination of industrially-capable performance and functionality with an extremely flat design makes the C5210 particularly well-suited for space-saving applications. The low installation height is made possible with the Beckhoff 3½-inch motherboards. The motherboard is equipped with a multitude of on-board interfaces, such as two Gigabit Ethernet ports, a DVI and a COM port as well as four USB ports. Further COM or USB ports as well as a sound interface and a second DVI connection can be led out as an option. The C5210 can be extended with two PCIe modules and a Mini PCI card. A DVD-ROM or multi DVD drive can be optionally installed behind the front flap. The following operating systems are offered for the 19-inch Industrial PC: Windows 7 Professional, Windows 7 Ultimate or Windows Embedded Standard 7.
