Sản phẩm · Mã FWS-2360

Thiết bị mạng cho máy tính để bàn (FWS-2360)

6 LANAtom
Thiết bị mạng cho máy tính để bàn FWS-2360
  • Desktop Network Appliance with Intel® Atom™ Processor C3000 Series
  • Hoạt động liên tục 24/7
  • Bảo hành chính hãng theo từng dòng máy, thời hạn ghi rõ trên báo giá.
GiáLiên hệBáo giá theo cấu hình (CPU, RAM, ổ lưu trữ, hệ điều hành) trong 2 giờ làm việc. Xem bảng giá máy tính công nghiệp theo dạng máy.
  • Chính hãng, bảo hành hãng
  • Giao toàn quốc từ TP.HCM
  • Kỹ thuật dựng máy & sửa chữa
  • Báo giá trong 2 giờ làm việc
Yêu cầu báo giá Gọi kỹ thuật

Thông số kỹ thuật

PART NUMBERFWS-2360E6-A10-00
CPUIntel® Atom® C3558
RAM260-pin DDR4 SODIMM/ECC socket x 2
BYPASS2 pairs
MINI-CARD SLOTFull Size x 2 (PCIe + USB), 1 with SIM socket
STORAGE2.5” HDD Bay x 1
LAN6 Intel® X553 (Marvell 88E1543) RJ45 x 4 Default Intel® I210-AT GbE x 2
USBUSB 3.2 Gen 1 x 2
CONSOLERJ-45 console x 1
SYSTEM FAN1
TPM—
DISPLAY—
MOUNTINGDesktop
POWERDC

Mô tả Thiết bị mạng cho máy tính để bàn (FWS-2360)

Thiết bị mạng cho máy tính để bàn

(FWS-2360)

  • Desktop Network Appliance with Intel® Atom™ Processor C3000 Series

Overview

  • AAEON’s FWS-2360 desktop network appliance is a ready-to-go white box solution with fiber optic technology for faster connection speeds. Powered by the Intel® Atom™ Processor C3000 Series (formerly Denverton), it offers QAT, Intel’s latest security and compression technology. This device suits wireless gateway, SD-WAN, IPS, WAN Optimization, NFV and vCPE applications as it can be expanded to offer WiFi and 4G LTE, and it’s fitted with a range of mass storage connections.

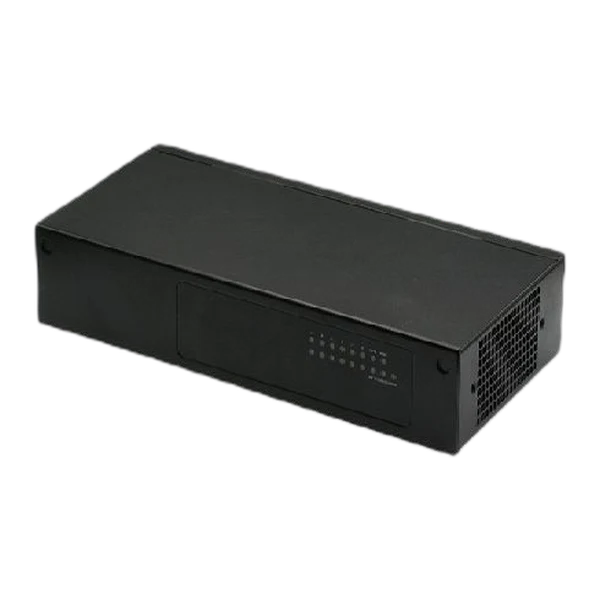

AAEON FWS-2360 nhìn từ phía đèn báo
AAEON FWS-2360 nhìn từ phía đèn báo

IPC247 cung cấp hàng chính hãng AAEON. Liên hệ IPC247 để được báo giá trong 2 giờ làm việc.

Intel QAT
  • Intel QuickAssist Technology speeds up the encryption and compression of data. With the high-powered CPUs used in the FWS-2360, this work is also isolated from the rest of the system's functions, allowing the device to continue its other functions without losing speed.
1GbE Fiber/ Copper Ports
  • With a pair of fiber/copper SFP GbE ports and four conventional LAN ports, the FWS-2360 has a rich array of I/O capabilities. The SFP GbE ports provide exceptional speed, while the conventional ports allow the FWS-2360 to support a LAN bypass function for up to two pairs for four LAN ports to ensure network traffic availability.
Versatility of Use
  • Whether the end user is an SMB or home office needing wired connectivity or a cafe or small hotel with customers demanding a powerful WiFi signal, the FWS-2360 can easily carry the software needed to keep multiple computers and devices hooked up and running smoothly.

Features

  • Desktop Network Appliance
  • Intel® Atom™ C3000 Series Processor Supports Dual and Quad Core
  • DDR4 SODIMM/ ECC DIMM (Dual Core 1 Slot Quad Core 2 Slot)
  • 4 Copper(88E1543) + 2 Copper(I210), optional 4 Copper(88E1543) + 2 Fiber(I210)
  • 2 Pairs Bypass Support
  • Mini PCIe with SIM Slot Support
  • Internal 2.5” SATA HDD Bay x 1 (Optional)
  • eMMC Support up to 16GB
  • RJ-45 Console x 1
  • USB 3.2 Gen 1 x 2 (Internal USB 2.0 x 1)

Specifications [FWS-2360]

SYSTEM
FORM FACTOR Desktop Network Appliance
PROCESSOR Intel® Atom™ Processor C3000 Series supports dual and quad core
CHIPSET SoC
SYSTEM MEMORY DDR4 SODIMM ECC DIMM (Dual core 1 slot Quad core 2 Slot) Up to 32GB
NETWORK
ETHERNET Intel® X553 (Marvell 88E1543) RJ45 x 4 Default Intel® I210-AT GbE x 2 ( Intel® I210-IS SFP x 2 Optional)
BYPASS Supports up to 2 pairs bypass function
DISPLAY
GRAPHICS CONTROLLER —
CONNECTOR —
STORAGE
HDD 2.5” HDD Bay x 1
CF/CFAST/MSATA SATA 6.0 Gb/s port x 1(Onboard eMMC up to 16GB optional)
INTERNAL/ EXPANSION INTERFACE
PCIE SLOT —
MINI-PCIE SLOT Mini-Card socket (full-size) x 2 (1 with SIM socket)
KB MOUSE Reserved pin-header
USB Dual Core: USB 3.2 Gen 1 x 1 + USB2.0 x 1
MISCELLANEOUS
RTC Internal RTC
WATCHDOG TIMER 1~255 steps by software programmable
SOFTWARE BUTTON —
TPM (TPM v1.2 9660/TPM2.0 9665 Optional)
GPIO (4 bits input, 4bits output optional)
FAN System fan x 1
MTBF (HOURS) 149683 Hours
COLOR Black
PHYSICAL & ENVIRONMENTAL SPEC
POWER REQUIREMENT 12V DC Power in connector
OPERATING TEMPERATURE 32°F ~ 104°F (0°C ~ 40°C )
STORAGE TEMPERATURE -4°F ~ 140°F (-20°C ~ 60°C)
OPERATING HUMIDITY 10%~80% relative humidity, non-condensing
STORAGE HUMIDITY 10%~80% @40°C; non-condensing
VIBRATION 0.5 Grms/ 5 ~ 500Hz / operation (2.5" HDD) 1.5 Grms/ 5 ~ 500Hz / non operation
SHOCK 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation
DIMENSION (W X D X H) 8.66” x 4.13” x 1.73” (220mm x 105mm x 44mm)
I/O
FRONT PANEL Power LED x 1 Status LED x 1 Storage Active LED x 1 Bypass LED x 2 LAN LED x 12
REAR PANEL USB 3.2 Gen 1 Port x 2 RJ-45 Port x 6 (Optional RJ-45 x 4 + SFP x 2) RJ-45 Console x 1 12V DC Power Input x 1 Software Reset Button x 1 Power Button x 1 (Antenna Hole x 2 Optional)

Ordering Information [FWS-2360]

Downloads [FWS-2360]

Packing List

  • Power Adapter
  • SATA Cable
  • SATA Power Cable
  • FWS-2360

Optional Accessories

1702031803 Power Cord, 3P-250V/10A, 180D, 1.8M, VDE, YP12/YC-12
1702031802 Power Cord, 3P-250V/10A, 180D, 1.8M, USA, YP12/YC-12
170203180B Power Cord, 3P-250V/10A, 180D, 1.8M, China, YP-03/YC-12
170203180E Power Cord, 3P-125V/7A, 1.8M, PSE, YP12/YC-12
1700091805 Console Cable

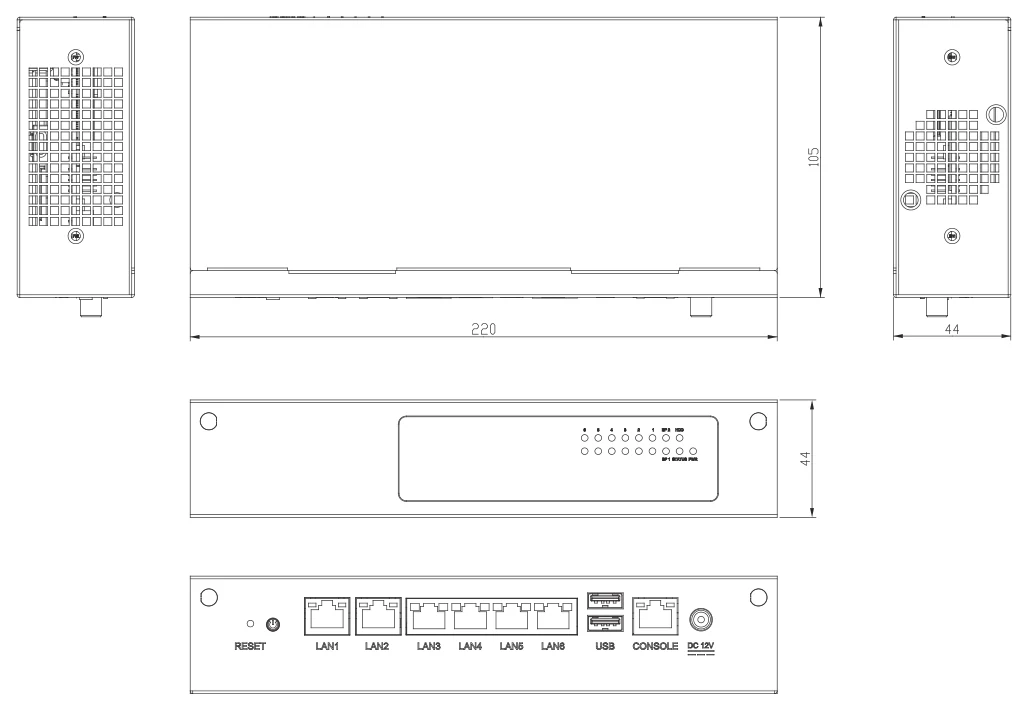

Bản vẽ kích thước FWS-2360 (mm)
Bản vẽ kích thước FWS-2360 (mm)
