CPU	chipset Intel R680E · TDP 65 W Tuỳ chọn: Intel Core Processor 9 273PE (12 Cores, up to 5.7 GHz, TDP 65W), Intel Core Processor 7 253PE (10 Cores, up to 5.5 GHz, TDP 65W), Intel Core Processor 5 223PE (8 Cores, up to 5.4 GHz, TDP 65W), Intel Core Processor 5 213PE (8 Cores, up to 5.2 GHz, TDP 65W), Intel Core Processor 3 201E (4 Cores, up to 4.8 GHz, TDP 60W), Intel Core Processor 9 273PTE (12 Cores, up to 5.5 GHz, TDP 45W), Intel Core Processor 7 253PTE (10 Cores, up to 5.4 GHz, TDP 45W), Intel Core Processor 5 223PTE (8 Cores, up to 5.4 GHz, TDP 45W), Intel Core Processor 5 213PTE (8 Cores, up to 5.2 GHz, TDP 45W), Intel Core Processor 3 201TE (4 Cores, up to 4.6 GHz, TDP 45W), Intel Core Processor 7 251E (24 Cores, up to 5.6 GHz, TDP 65W), Intel Core Processor 5 221E (14 Cores, up to 5.2 GHz, TDP 65W), Intel Core Processor 5 211E (10 Cores, up to 4.9 GHz, TDP 65W), Intel Core Processor 7 251TE (24 Cores, up to 5.4 GHz, TDP 45W), Intel Core Processor 5 221TE (14 Cores, up to 5.0 GHz, TDP 45W), Intel Core Processor 5 211TE (10 Cores, up to 4.8 GHz, TDP 45W), Intel Core i9-14901E (8 Cores, up to 5.6 GHz, TDP 65W), Intel Core i7-14701E (8 Cores, up to 5.4 GHz, TDP 65W), Intel Core i5-14501E (6 Cores, up to 5.2 GHz, TDP 65W), Intel Core i5-14401E (6 Cores, up to 4.7 GHz, TDP 65W), Intel Core i3-14100 (4 Cores, up to 4.7 GHz, TDP 60W), Intel Core i9-14901TE (8 Cores, up to 5.5 GHz, TDP 45W), Intel Core i7-14701TE (8 Cores, up to 5.2 GHz, TDP 45W), Intel Core i5-14501TE (6 Cores, up to 5.1 GHz, TDP 45W), Intel Core i5-14401TE (6 Cores, up to 4.5 GHz, TDP 45W), Intel Core i3-14100T (4 Cores, up to 4.4 GHz, TDP 35W), Intel Processor 300 (2 Cores, up to 3.9 GHz, TDP 46W), Intel Processor 300T (2 Cores, up to 3.4 GHz, TDP 35W), Intel Core i9-14900 (24 Cores, up to 5.8 GHz, TDP 65W), Intel Core i7-14700 (20 Cores, up to 5.4 GHz, TDP 65W), Intel Core i5-14500 (14 Cores, up to 5.0 GHz, TDP 65W), Intel Core i5-14400 (10 Cores, up to 4.7 GHz, TDP 65W), Intel Core i9-14900T (24 Cores, up to 5.5 GHz, TDP 35W), Intel Core i7-14700T (20 Cores, up to 5.2 GHz, TDP 35W), Intel Core i5-14500T (14 Cores, up to 4.8 GHz, TDP 35W), Intel Core i5-14400T (10 Cores, up to 4.5 GHz, TDP 35W), Intel Core i3-13100E (4 Cores, up to 4.4 GHz, TDP 60W), Intel Core i3-13100 (4 Cores, up to 4.5 GHz, TDP 60W), Intel Core i3-13100TE (4 Cores, up to 4.1 GHz, TDP 35W), Intel Core i3-13100T (4 Cores, up to 4.2 GHz, TDP 35W), Intel Core i9-13900E (24 Cores, up to 5.2 GHz, TDP 65W), Intel Core i9-13900 (24 Cores, up to 5.6 GHz, TDP 65W), Intel Core i7-13700E (16 Cores, up to 5.1 GHz, TDP 65W), Intel Core i7-13700 (16 Cores, up to 5.2 GHz, TDP 65W), Intel Core i5-13500E (14 Cores, up to 4.6 GHz, TDP 65W), Intel Core i5-13400E (10 Cores, up to 4.6 GHz, TDP 65W), Intel Core i5-13500 (14 Cores, up to 4.8 GHz, TDP 65W), Intel Core i5-13400 (10 Cores, up to 4.6 GHz, TDP 65W), Intel Core i9-13900TE (24 Cores, up to 5.0 GHz, TDP 35W), Intel Core i7-13700TE (16 Cores, up to 4.8 GHz, TDP 35W), Intel Core i7-13700T (16 Cores, up to 4.9 GHz, TDP 35W), Intel Core i5-13500TE (14 Cores, up to 4.5 GHz, TDP 35W), Intel Core i5-13500T (14 Cores, up to 4.6 GHz, TDP 35W), Intel Core i5-12500E (6 Cores, up to 4.5 GHz, TDP 65W), Intel Core i5-12500 (6 Cores, up to 4.6 GHz, TDP 65W), Intel Core i5-12400 (6 Cores, up to 4.4 GHz, TDP 65W), Intel Core i3-12100E (4 Cores, up to 4.2 GHz, TDP 60W), Intel Core i3-12100 (4 Cores, up to 4.3 GHz, TDP 60W), Intel Core i5-12500TE (6 Cores, up to 4.3 GHz, TDP 35W), Intel Core i3-12100TE (4 Cores, up to 4.0 GHz, TDP 35W), Intel Pentium G7400E (2 Cores, up to 3.6 GHz, TDP 46W), Intel Pentium G7400TE (2 Cores, up to 3.0 GHz, TDP 35W), Intel Celeron G6900E (2 Cores, up to 3.0 GHz, TDP 46W), Intel Celeron G6900TE (2 Cores, up to 2.4 GHz, TDP 35W), Intel Pentium G7400 (2 Cores, up to 3.7 GHz, TDP 46W), Intel Pentium G7400T (2 Cores, up to 3.1 GHz, TDP 35W), Intel Celeron G6900 (2 Cores, up to 3.4 GHz, TDP 46W), Intel Celeron G6900T (2 Cores, up to 2.8 GHz, TDP 35W), Intel Core i9-12900E (16 Cores, up to 5 GHz, TDP 65W), Intel Core i9-12900 (16 Cores, up to 5.1 GHz, TDP 65W), Intel Core i7-12700E (12 Cores, up to 4.8 GHz, TDP 65W), Intel Core i7-12700 (12 Cores, up to 4.9 GHz, TDP 65W), Intel Core i9-12900TE (16 Cores, up to 4.8 GHz, TDP 35W), Intel Core i7-12700TE (12 Cores, up to 4.7 GHz, TDP 35W)
Bộ nhớ	DDR5 SO-DIMM · 2 khe · tối đa 96 GB · hỗ trợ ECC
Lưu trữ	1 x M.2 Key M Type 2280 (PCIe Gen3 x4) 1 x M.2 Key M Type 2280 (PCIe Gen3 x4 / SATA 3.0)
GPU	Integrated Intel UHD Graphics 770 / 730 / 710
Cổng vào/ra	1 x COM RS-232/422/485 (Supports 5V/12V) 1 x LAN 1 GbE · Intel I219 4 x LAN 1 GbE · Intel I210 4 x USB 3.2 Gen1x1 (5Gbps) 2 x DisplayPort
Khe mở rộng	1 x PCIe Interface 1x PCIex16 interface for Optional Scalable Expansion Deck
Môi trường	Nhiệt hoạt động -40°C ~ 65°C -40°C to 65°C with 35W TDP CPU; -40°C to 55°C with 45W TDP CPU; -40°C to 45°C with 65W TDP CPU Nhiệt lưu kho -40°C ~ 85°C Độ ẩm 95%@65°C MTBF 356683 giờ Chống rung 3 Grms · Random Vibration: Operating, 3 Grms, 5-500 Hz (IEC60068-2-64); Sinusoidal: 1 Grms, 10-500 Hz (IEC60068-2-6) Chống sốc 30 G · Operating, Half-sine 11 ms Duration (IEC60068-2-27)
Cơ khí	135.5 x 132 x 152.2 mm · 3.03 kg · Extruded Aluminum with Heavy Duty Metal · Passive heat dissipation combined with external fan, Dynamic Thermal Mechanism & Smart OTP · Lắp đặt: Wall Mount, DIN-RAIL Mount
Watchdog	Software Programmable, Supports 256 Levels System Reset
Hệ điều hành	Windows 10, Windows 11, Ubuntu 22.04
Chứng nhận	EN 61000-6-2, EN 61000-6-4, CE, UKCA, FCC, ICES-003 Class A, UL, cUL, CB, IEC, EN 62368-1

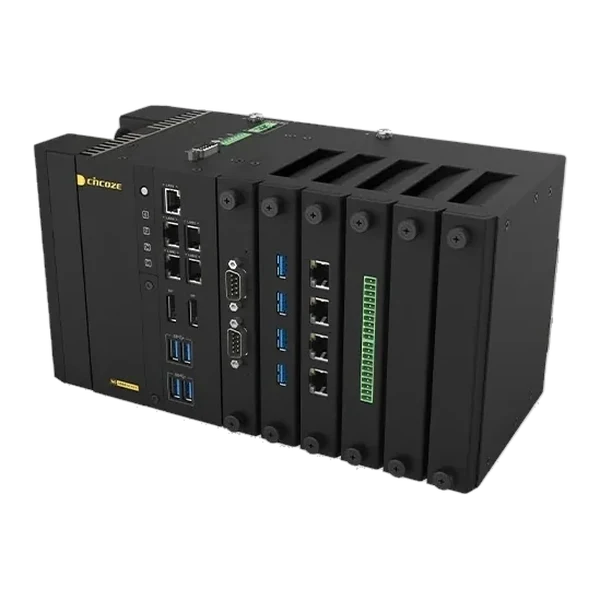

Máy tính công nghiệp Cincoze MD-3000

Thông số kỹ thuật

Mô tả Máy tính công nghiệp Cincoze MD-3000

Điểm nổi bật

Model tương đương IPC247 phân phối
