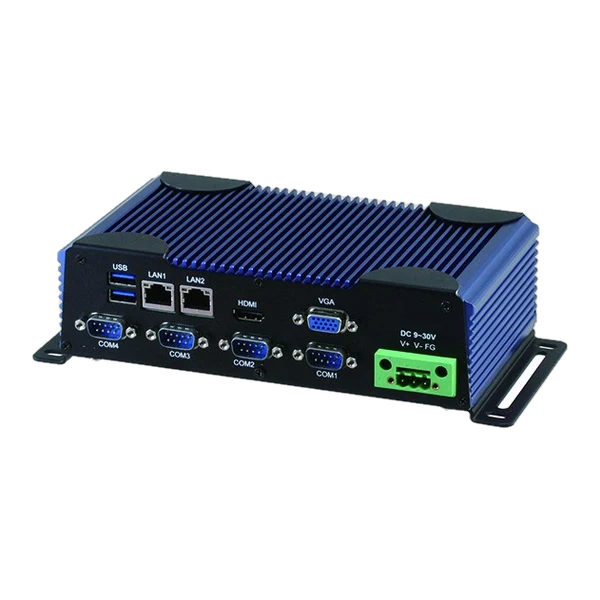

Máy tính công nghiệp không quạt AAEON BOXER-6615

• Overview

  Fanless Embedded Box PC with Intel® Pentium® N3710, 1.6 GHz

  Features

  • Intel® Pentium® N3710 1.6GHz
  • 6COMs: 2 x RS232/422/485 + 4 x RS-232
  • USB3.0 x 2, USB2.0 x 2
  • VGA + HDMI output, support dual view / simultaneous display
  • Support 2.5” drive bay x 1, mSATA
  • Support 8 channel DIO x 1
  • DDR3L 1600 SODIMM x 1, Memory Max. up to 8GB
  • AAEON’s Hi-Safe Support

  IPC247 cung cấp hàng chính hãng AAEON. Liên hệ IPC247 để được tư vấn cấu hình và báo giá trong 2 giờ làm việc.

  Specifications [BOXER-6615]

  SYSTEM
  CPU	Intel® Pentium® N3710 1.6GHz
  CHIPSET	Intel® System on Chip
  SYSTEM MEMORY	204-pin 1600 DDR3L SODIMM x 1, up to 8GB
  DISPLAY INTERFACE	VGA, HDMI
  STORAGE DEVICE	mSATA, 2.5" HDD/SSD
  ETHERNET	Realtek RTL-8111E, 10/100/1000Base x2
  I/O	RS-232/422/485 x 2 RS-232 x 4 USB3.0 x 2 USB2.0 x 2 VGA x 1 HDMI x 1 DIO x 1 Line-Out x 1 Antenna holes x 2 Power switch Power input
  EXPANSION	Full-size Mini-Card x 1 Half-size Mini-Card x 1 (optional for mSATA)
  INDICATOR	Power LED HDD active LED
  OS SUPPORT	Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), WES7/WES8, Win10 IOT, Linux
  POWER SUPPLY
  POWER REQUIREMENT	9 - 30V with 3-pin terminal block (A2M) 12V with lockable DC jack (A2)
  MECHANICAL
  MOUNTING	Wallmount DIN Rail (Mounting kit is optional)
  DIMENSIONS (W X H X D)	197mm(W) x 55mm(H) x 110mm(D)
  GROSS WEIGHT	6.6 lb (2.8 kg)
  NET WEIGHT	4.4 lb (2 kg)
  ENVIRONMENTAL
  OPERATING TEMPERATURE	'-20°C ~ 60°C with W.T. SSD/HDD/mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
  STORAGE TEMPERATURE	-4°F ~ 158°F (-20°C ~ 70°C)
  STORAGE HUMIDITY	95% @ 40°C, non-condensing
  ANTI-VIBRATION	5 Grms/ 5 ~ 500Hz/ operation –mSATA/SSD 1 Grms/ 5~ 500Hz/ operation – HDD
  CERTIFICATION	CE/FCC class A

  Ordering Information [BOXER-6615]

  Packing List

  • Wallmount Bracket x 2
  • Screw Package x 1
  • Product DVD x 1
  • Phoenix Power Connector x 1 (For A2M, DC 9 ~30 V only)
  • BOXER-6615

  Optional Accessories

  125530060A	DC Jack for 6615-A2, Power Adapter, AC, 100/240V, 12V/5A, 60W, W/ Lock
  1255900841	3 pin for 6615-A2M, Power Adapter, AC, 100/240V, 12V/7A, 84W
  1702031802	Power Cord (US Type)
  1702031803	Power Cord (European Type)
  170203180E	Power Cord (Japanese Type)

• Bảo hành chính hãng theo từng dòng máy, thời hạn ghi rõ trên báo giá
• Dịch vụ lắp đặt, bảo trì on-site: vui lòng liên hệ để được báo giá.
