- Máy tính công nghiệp không quạt AAEON BOXER-6614
AAEON AAEON · Mã BOXER-6614
Máy tính công nghiệp không quạt AAEON BOXER-6614
Không quạtCeleron
Máy tính công nghiệp không quạt AAEON BOXER-6614
- Fanless Embedded Box PC with Intel® Celeron® N2930 Quad Core 1.83 GHz/Celeron® N2807 Dual Core 1.58 GHz
- Hoạt động liên tục 24/7
- Bảo hành chính hãng theo từng dòng máy, thời hạn ghi rõ trên báo giá
GiáLiên hệBáo giá theo cấu hình (CPU, RAM, ổ lưu trữ, hệ điều hành) trong 2 giờ làm việc. Xem bảng giá máy tính công nghiệp theo dạng máy.
- Chính hãng, bảo hành hãng
- Giao toàn quốc từ TP.HCM
- Kỹ thuật dựng máy & sửa chữa
- Báo giá trong 2 giờ làm việc
Thông số kỹ thuật
| 125530060A - DC Jack for 6614-A1/A2 | Power Adapter, AC, 100/240V, 12V/5A, 60W, W/ Lock, FSP, FSP060-DBAE1 |
|---|---|
| 1255900841 - 3 pin for 6614-A1M/A2M | Power Adapter, AC, 100/240V, 12V/7A, 84W, FSP, FSP084-DMAA1 |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 9741681003 | Din Rail Mount Kit |
Mô tả Máy tính công nghiệp không quạt AAEON BOXER-6614
Máy tính công nghiệp không quạt AAEON BOXER-6614
Overview
- AAEON introduces the newest product in the Boxer series, BOXER-6614, which utilizes the Intel® Celeron® N2930 Quad Core 1.83 GHz SoC N2930/ Celeron® N2807 Dual Core 1.58 GHz (Optional): this embedded controller expands its graphics performance greatly with the newest generation of Celeron® processors.
IPC247 cung cấp hàng chính hãng AAEON. Liên hệ IPC247 để được tư vấn cấu hình và báo giá trong 2 giờ làm việc.
Features
- Intel® Celeron® J1900 2.0 GHz/ N2930 Quad Core 1.83 GHz/ Celeron® N2807 Dual Core 1.58 GHz
- Intel® HD Graphics Engine
- DDR3L 1333 MHz SODIMM x 1, Memory Max. up to 8 GB
- Intel® Gigabit Ethernet x 2
- VGA + HDMI Output, Support Dual View/Simultaneous Display

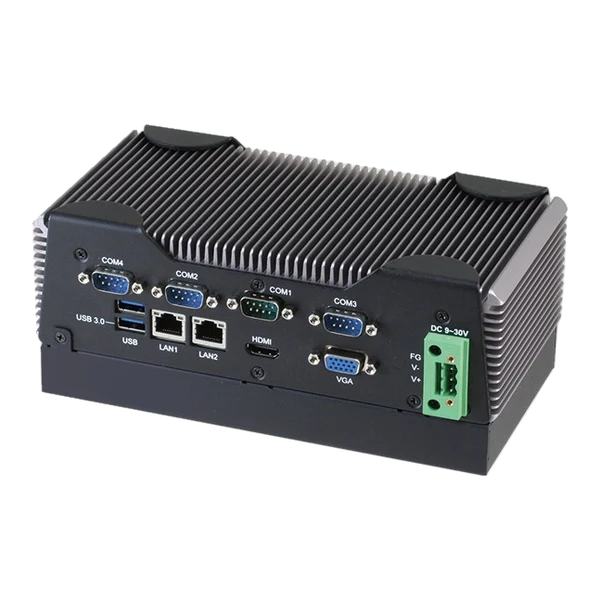

- RS-232/422/485 x 2, RS-232 x 2
- USB3.0 x 1, USB2.0 x 3
- Full Size Mini-Card with SIM Slot x 1
- Half Size Mini-Card x 1 for Factory-Install
- Compact Size & Low Power
- Cost-Effective Design
- Fanless System Design
- AAEON’s Hi-Safe Support
Specifications [BOXER-6614]
| SYSTEM | |
| CPU | Intel® Celeron™ J1900, 2.0 GHz |
| Intel® Celeron™ N2930, 1.83 GHz | |
| Intel® Celeron™ N2807, 1.58GHz | |
| CHIPSET | Intel® System on Chip |
| SYSTEM MEMORY | DDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900/N2930/E3845) or 4 GB (N2807) |
| DISPLAY INTERFACE | VGA, HDMI |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® I210/I211, 10/100/1000Base-TX x 2 |
| I/O | RS-232/422/485 x 2 |
| RS-232 x 2 | |
| USB 2.0 x 3 | |
| USB 3.0 x 1 | |
| VGA x 1 | |
| HDMI x 1 | |
| Line-out x 1 | |
| LAN x 2 | |
| CFast slot x 1 | |
| Antenna holes x 2 | |
| Power switch | |
| Power input | |
| EXPANSION | Full-size Mini-Card x 1 |
| Half-size Mini-Card x 1 | |
| INDICATOR | Power LED |
| HDD active LED | |
| OS SUPPORT | Windows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit), WES7/WES8, Linux Ubuntu 14.04/ Kernel 3.13.0 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 - 30V with 3-pin terminal block |
| 12V with lockable DC jack | |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIN Rail (Mounting kit is optional) | |

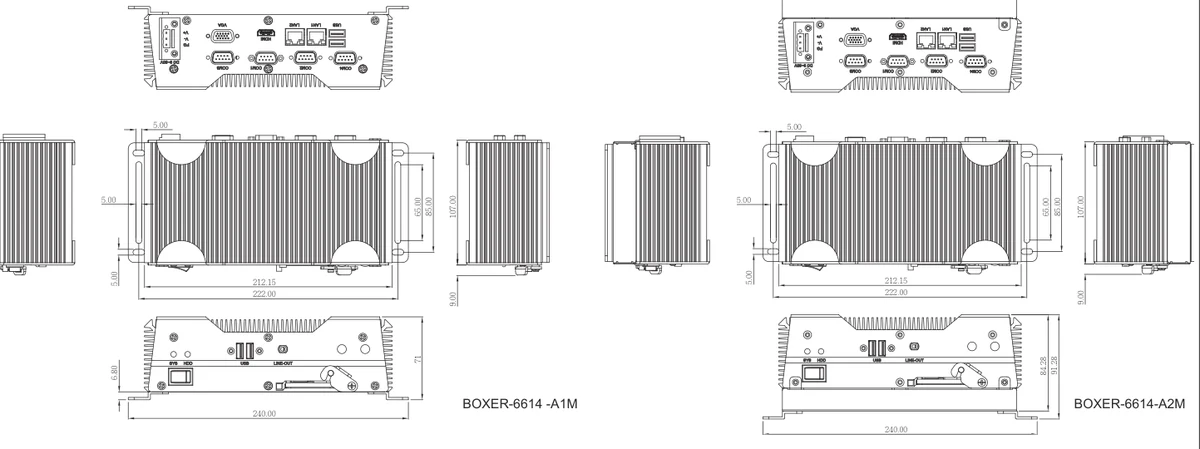

| DIMENSIONS (W X H X D) | 8.35" x 4.21" x 2.53" (212.15mm x 107mm x 64.2mm ) |
| GROSS WEIGHT | 6.6 lb (2.8 kg) |
| NET WEIGHT | 4.4 lb (2 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -20°C ~ 55°C with wide temperature CFast™ card |
| -20°C ~ 60°C with wide temperature HDD | |
| (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices) | |
| STORAGE TEMPERATURE | -20°C ~ 70°C |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 5 Grms/ 5 ~ 500Hz/ operation –CFast™ card |
| 1 Grms/ 5~ 500Hz/ operation – HDD | |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6614]
| PART NUMBER | BOXER-6614-A1-1010 | BOXER-6614-A11M-1010 | BOXER-6614-A12-1010 | BOXER-6614-A12M-1010 | BOXER-6614-A1M-1010 | BOXER-6614-A2-1010 | BOXER-6614-A2M-1010 | BOXER-6614-A31-1010 | BOXER-6614-A31M-1010 | BOXER-6614-A32-1010 | BOXER-6614-A32M-1010 |
| CPU | Intel® Celeron® SoC N2930 | Intel® Celeron® SoC N2807 | Intel® Celeron® SoC N2807 | Intel® Celeron® SoC N2807 | Intel® Celeron® SoC N2930 | Intel® Celeron® SoC N2930 | Intel® Celeron® SoC N2930 | Intel® Celeron® SoC J1900 | Intel® Celeron® SoC J1900 | Intel® Celeron® SoC J1900 | Intel® Celeron® SoC J1900 |
| RAM | — | — | — | — | — | — | — | — | — | — | — |
| LAN | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| USB | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| RS-232 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| RS-232/422/485 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| STOGARE | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 | CFast Socket x 1 (Easy-to-swap) SATA 2.5” HDD bay x 1 |
| DISPLAY | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 | VGA x 1 |
| HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 | |
| EXPANSION | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 | Full Size Mini-Card x 1 Half Size Mini-Card x 1 |
| MOUNTING | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) | Wallmount/ Din Rail Mounting Kit (Optional) |
| POWER | DC 12V | DC 9-30V | DC 12V | DC 9-30V | DC 9-30V | DC 12V | DC 9-30V | DC 12V | DC 9-30V | DC 12V | DC 9-30V |
| TEMP. | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) | -20°C~55°C with Wide Temp. CFast(with 0.5 m/ s air flow, according to IEC68-2-14) |
| -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) | -20°C~60°C with Wide Temp. HDD(with 0.5 m/s air flow, according to IEC68-2-14) |
Packing List
- Wallmount Bracket x 2
- Screw Package x 1
- RAM Thermal Pad x 1 (60mm x 25mm x 3mm) (For A1/A1M the SKU without
- HDD kit only)
- Phoenix Power Connector x 1 (For A1M/A2M, for DC 9 ~30 V only)
- Product DVD
- BOXER-6614
