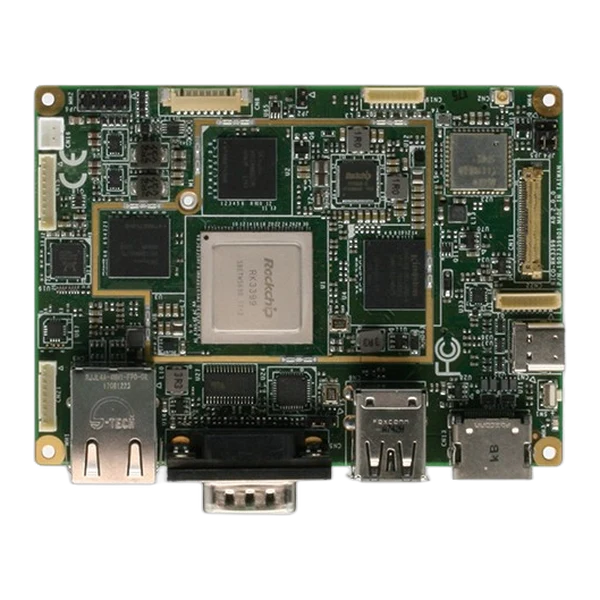

Bo mạch RICO-3399 (PICO-ITX)

Bo mạch RICO-3399 (PICO-ITX)

Pico-ITX Fanless Board with Rockchip ARM Dual-Core Cortex-A72 and Quad-Core Cortex-A53

Overview

The RICO-3399 single board computer is a RISC platform that is designed to meet the requirements of a wide range of applications, from digital signage and KIOSK to intelligent cameras and machine learning applications. Armed with the powerful Rockchip RK3399 ARM hexa-core processor, capable of 4K Ultra HD, built on the PICO-ITX form factor, and featuring a fanless design; the RICO-3399 SBC is designed to deliver out-of-the-box brains and brawn. Powered by the Rockchip RK3399 ARM hexa-core processor, the RICO-3399 SBC has the brains and brawn to tackle your application requirements. Utilizing the latest in ARM and RISC technology, the Rockchip RK3399 ARM hexa-core processor is a SoC that combines two processors into one, splitting computing and graphics tasks between the two processors. The RICO-3399 teams up the processor with a built-in Mali-T864 GPU to provide the strength for 4K video decode applications and 4K Ultra HD graphics at 60Hz through HDMI 2.0. The RICO-3399 also features onboard 16GB eMMC storage, and 2GB LPDDR3 memory, giving it the intelligence to power machine learning and computer vision applications. The RICO-3399 SBC combines a fanless design, RISC architecture, and the PICO-ITX form factor to be a platform that is powerful and energy conscious. In addition, these features allow it to squeeze into almost any application that requires a tight fit. Being small doesn’t mean sacrificing flexibility and expandability. The RICO-3399 features a wide array of I/O interfaces, including USB 2.0, USB 3.0, USB C, microSD slot, and MIPI camera support. The RICO-3399 also features both a nanoSIM and a mini-PCIe slot to provide 3G and 4G capabilities, making the RICO-3399 a mobile platform. AAEON’s manufacturer services offer both hardware and software customization options that ensure the RICO-3399 SBC will be ready to go the moment you open the box. The RICO-3399 comes standard with Android 8.1, which can be tailored at the factory to suit your needs. Further customization options are available to help reduce turnaround, speed up development and ensure rapid APP deployment. IPC247 works with AAEON to meet your customization requirements. The RICO-3399 SBC powered by Rockchip RK3399 ARM hexa-core utilizes RISC architecture to deliver the brawn of 4K Ultra HD graphics, the brains of intelligent camera systems, and the compact package of the PICO-ITX form factor.

IPC247 cung cấp hàng chính hãng AAEON. Liên hệ IPC247 để được báo giá trong 2 giờ làm việc.

Applications

• Digital Signage
• Home Automation
• KIOSK
• Facial Recognition

Features

• Rockchip RK3399 SoC
• Onboard LPDDR3 Memory 2GB
• Onboard eMMC 16GB
• MicroSD Slot
• Gigabit Ethernet x 1
• eDP and HDMI
• RS-232 x 1, RS-232/422/485
• USB 2.0 x 1, USB 3.2 Gen 1 x 1, Type C x 1

Specifications[RICO-3399]

SYSTEM
FORM FACTOR	Pico-ITX
CPU	Rockchip RK3399 Cortex™-A72 Dual-core and Cortex™-A53 Quad-core(up to 1.8 GHz)
GPU	Mali-T864
GRAPHICS	Video Decode: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC Video Encode: H.264 UP to HP@level4.1, MVC and VP8
MEMORY CAPACITY	LPDDR3 2 GB
STORAGE/SSD	16GB eMMC and Micro SD card
OPERATING SYSTEM	Android 8.1 / Debian 10
KERNEL	Kernel 4.4
WATCHDOG TIMER	Integrated
POWER REQUIREMENT	+12V DC input
POWER CONSUMPTION (TYPICAL)	0.6A@12V, full load, Hexa core

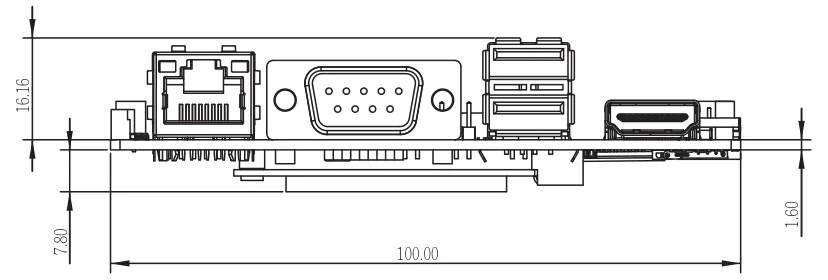

DIMENSION	3.94" x 2.84" (100mm x 72mm)
GROSS WEIGHT	0.44 lb (0.2 kg)
OPERATING TEMPERATURE	32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE	-40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	80,000
CERTIFICATION	CE/FCC
DISPLAY
HDMI	HDMI(2.0) up to 4k x 2k @60Hz
EDP	Up to 4k x 2k @60Hz
LVDS	—
MIPI	—
I/O
ETHERNET	GbE x 1
USB PORT	USB 3.2 Gen 1 Type C x 1, USB 2.0 Type A x 1, USB 3.2 Gen 1 Type A x 1 USB 2.0 Pin Header x 1
SERIAL PORT	RS-232/422/485 x 1, RS-232 Pin header x 1, Debug port pin header x 1
AUDIO	2.5W (by 4Ω) Speaker/ Microphone/ Earphone
GPIO	8-bit (4-in, 4-out)
EXPANSION SLOT	Full-size mini-PCIe slot x 1 (For 3G/4G card)
SIM SLOT	Nano-SIM
SD SOCKET	Supports Micro SD card
CAMERA	—
