Bo mạch PICO-APL3 (PICO-ITX)
Pentium
Bo mạch PICO-APL3 (PICO-ITX)
- Intel® Pentium® N4200/ Celeron® N3350/ Atom™ Processor SoC
- Bảo hành chính hãng theo từng dòng máy, thời hạn ghi rõ trên báo giá
GiáLiên hệBáo giá theo cấu hình (CPU, RAM, ổ lưu trữ, hệ điều hành) trong 2 giờ làm việc. Xem bảng giá máy tính công nghiệp theo dạng máy.
- Chính hãng, bảo hành hãng
- Giao toàn quốc từ TP.HCM
- Kỹ thuật dựng máy & sửa chữa
- Báo giá trong 2 giờ làm việc
Thông số kỹ thuật
| Part Number · Description | Qty |
|---|---|
| 1709070500 · (TF) SATA Cable, 50cm | 1 |
| 1702150155 · (TF) SATA Power Cable, 15cm | 1 |
| PICO-APL3-HSK01 · Heatsink, used with heat spreader | 1 |
| PICO-APL3-HSP01 · Heat Spreader | 1 |
| 1700040151 · (TF) USB Cable, 15cm | 2 |
| 1701090122 · (TF)Flat Cable, D-Sub 9P(M), 9P 1.0mm Housing, 12cm | 2 |
| 1709100254 · (TF) Phone Jack Cable, 25cm | 1 |
| 1255300408 · (TF)Power Adapter, 12V, 40W, FSP, FSP040-RHAN2.9NA0404990, ESD | 1 |
| 1702030176 · (TF)Power Cable, 3P DC jack, TERMINAL*2.17cm, TKS-G21-LN05 | 1 |
Mô tả Bo mạch PICO-APL3 (PICO-ITX)
Bo mạch PICO-APL3 (PICO-ITX)
Pico-ITX Board with Intel® Pentium® N4200/ Celeron® N3350/ Atom™ Processor SoC
Overview
Strength and reliability might be the AAEON PICO-APL3 main selling points, but this compact motherboard offers a broad feature set. Built around Intel® Pentium® N4200/ Celeron® N3350/ Atom™ Processor SoC (formerly Apollo Lake), it’s both cost effective and energy efficient, and the power savings are maximized by the board’s low power DDR3L memory. Customers also get a range of expansion slots including the option of a BIO interface and choice of power connectors.
Instead of relying on a SO-DIMM socket for memory, the PICO-APL3 offers onboard memory and eMMC storage. This rugged solution eliminates the need for vulnerable plug-in connections and makes the entire system more robust – a feature that’s especially useful with in-vehicle applications that require shock- and vibration-resistant boards. If customers need additional high-capacity storage, the PICO-APL3 supports an M.2 2280 B key and a SATA III Port with a 2.5” HDD Bay for further expansion.
The PICO-APL3 offers optional built-in TPM. This provides an added level of security over TPM firmware that is standard on other PICO boards.
The PICO-APL3 can optionally be housed in the PICO-SEMI chassis, which comprises a pair of nearly identical parts that easily slot together and are held in place with just six screws.

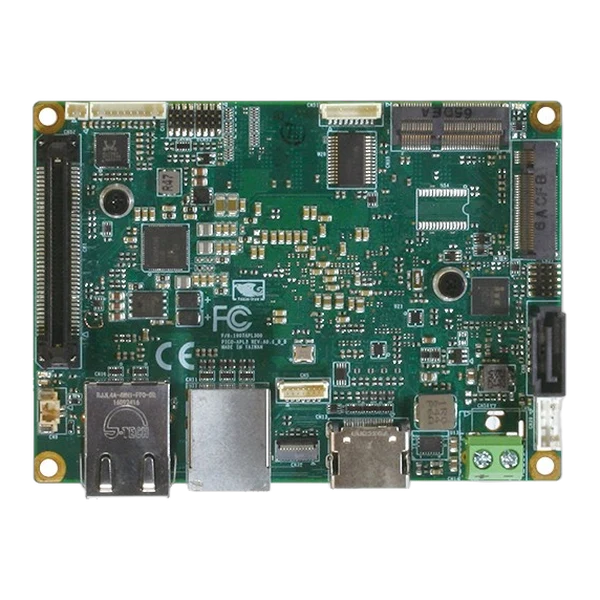

Bo mạch PICO-APL3 nhìn từ mặt trên
Applications
- Digital Signage
- Retail
- POS
- FinTech
Features
- Intel® Pentium® N4200/ Celeron® N3350/ Atom™ Processor SoC
- Onboard DDR3L 2GB or 4GB
- Onboard Storage eMMC 32GB (Optional to 16GB/64GB/128GB)
- Single Gigabit Ethernet Support
- HDMI 1.4b, eDP for Display
- BIO Reserved (Optional)
- USB 3.2 Gen 1 x 2, USB 2.0 x 2, SATA 6.0Gb/s x 1
- M.2 B Key (2280) x 1, M.2 E Key (2230) x 1
- Onboard HDA Audio Supports (Line in, Line-out, MIC)
- MIPI-CSI 2 Lanes x 1 for 2M Camera (Optional)
- MIPI-CSI 4 Lanes x 1 for 8M Camera (Optional)
Specifications [PICO-APL3]

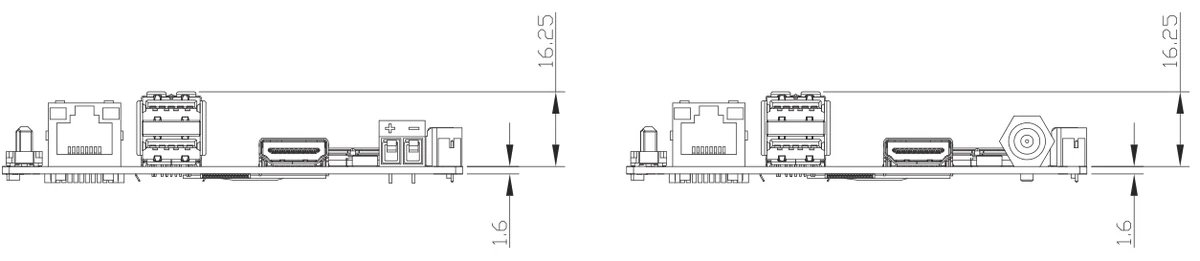

| SYSTEM | |
| FORM FACTOR | Pico-ITX |
| CPU | Intel® Atom™ Processor SoC |
| CPU FREQUENCY | Up to 2.4GHz |
| CHIPSET | Intel® Atom™ Processor SoC |
| MEMORY TYPE | Onboard DDR3L 2GB (Optional to 4GB) |
| MAX. MEMORY CAPACITY | Up to 4GB |
| BIOS | AMI/SPI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +12V, AT/ATX |
| POWER SUPPLY TYPE | Lockable & phoenix Terminal co-lay |
| POWER CONSUMPTION (TYPICAL) | Intel® N4200 processor, DDR3L 4GB, 1.1A@12V |
| SYSTEM COOLING | Heat-spreader, heatsink & cooler (Optional) |
| DIMENSION | 3.94" x 2.84" (100mm x 72mm) |
| GROSS WEIGHT | 0.18 lb (0.08 kg) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40˚F ~ 185˚F (-40˚C ~ 85˚C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 110000 |
| CERTIFICATION | CE,FCC |
| DISPLAY | |
| CHIPSET | Intel® Atom™ Processor SoC |
| RESOLUTION | HDMI 1.4b: 3840 x 2160@30Hz Internal eDP: 1920x1080@60Hz (Optional) DDI (Optional from BIO) |
| LCD INTERFACE | eDP |
| I/O | |
| STORAGE/SSD | SATA 6.0Gb/s x 1, 5V/12V Power reserved M.2 2280 (B Key) x 1 eMMC 32GB (optional to 16GB/64GB/128GB) |
| ETHERNET | Realtek 8111G x 1 |
| USB PORT | USB 3.2 Gen 1 x 2 Rear IO USB 2.0 x 2 (Internal, co-use with FAN connector) |
| SERIAL PORT | COM1: RS-232 COM2: RS-232 |
| AUDIO | Realtek ALC256 (Included Amp) |
| DIO | 4-bit |
| EXPANSION SLOT | M.2 2230 x 1 (E-Key) BIO x 1 (Optional) I2C, Smbus, I2S MIPI-CSI x 2 Lanes (Optional) MIPI-CSI x 4 Lanes (Optional) |
| SIM | — |
Ordering Information [PICO-APL3]
| PART NUMBER | PICO-APL3-A10-0001 | PICO-APL3-A10-0002 | PICO-APL3-A10-0003 | PICO-APL3-A10-DC04 |
|---|---|---|---|---|
| CPU | Celeron® N3350 (Dual Core) | Celeron® N3350 (Dual Core) | Pentium® N4200 (Quad Core) | Celeron® N3350 (Dual Core) |
| MEMORY | Onboard DDR3L 2GB | Onboard DDR3L 4GB | Onboard DDR3L 4GB | On board DDR3L 2GB |
| THERMAL | W/o Heatspreader | W/o Heatspreader | W/o Heatspreader | W/o Heatspreader |
| DISPLAY | HDMI x 1 | HDMI x 1 eDP x 1 | HDMI x 1 | HDMI x 1 |
| STORAGE | SATA 3.0 x 1 M.2 2280 (B Key) x 1 eMMC 32GB | SATA 3.0 x 1 M.2 2280 (B Key) x 1 eMMC 32GB | SATA 3.0 x 1 M.2 2280 (B Key) x 1 eMMC 32GB | SATAIII x 1 M.2 2280 (B Key) x 1 eMMC 32GB |
| LAN | GbE x 1 | GbE x 1 | GbE x 1 | GbE x 1 |
| USB | USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) | USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) | USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) | USB 3.2 Gen 1 x 2 (Rear) USB 2.0 x 2 (Internal) |
| RS-232 | 2 | 2 | 2 | 2 |
| RS-232/422/485 | — | — | — | — |
| EXPANSION SLOT | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 | M.2 2230 (E Key) x 1 |
| POWER | +12V (Phoenix Terminal) | +12V (Phoenix Terminal) | +12V (Phoenix Terminal) | +12V (Phoenix Terminal) |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | DIO 4 bit Full Audio with Amp | DIO 4 bit Full Audio with Amp | DIO 4 bit Full Audio with Amp | DIO 4 bit Full Audio with Amp |
Downloads [PICO-APL3]
1. Datasheet
2. Manual: PICO-APL3 Manual 5.0
Packing List
- PICO-APL3
Optional Accessories
