Bo mạch nhúng EPIC-BT07 (bản thường 0~60°C, bản W2 -40~85°C)

Bo mạch nhúng (bản thường 0~60°C, bản W2 -40~85°C)

EPIC-BT07

EPIC Board with Intel® Atom™/ Celeron® Processor SoC

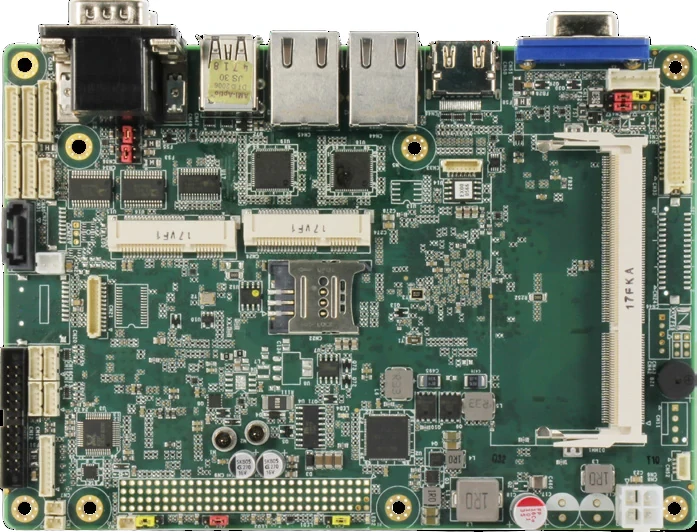

EPIC-BT07 là bo mạch chuẩn EPIC (115 x 165 mm) dùng Intel® Atom™ E3845, Celeron® J1900 hoặc Celeron® N2807, RAM DDR3L-1333 SODIMM tối đa 8GB (bản N2807 tối đa 4GB), 2 cổng Gigabit Ethernet Intel® I210, 6 cổng COM (4 x RS-232, 2 x RS-232/422/485), USB 3.2 Gen 1 x 1 và USB 2.0 x 5. Bo mạch xuất hình CRT, LVDS 24-bit hai kênh và HDMI, chạy đồng thời hai màn hình; mở rộng qua Mini-Card, mSATA và PCI-104 (tuỳ chọn), nguồn vào 12V hoặc 9~24VDC. Các mã EPIC-BT07-A10 hoạt động ở 0~60°C; mã EPIC-BT07W2 hoạt động ở -40~85°C. IPC247 cung cấp hàng chính hãng AAEON.

Overview

The EPIC-BT07 caters to the needs of the market through six COM ports, an interface still popular among most industrial users. Other expansion interface include the PC/104 bus that allow expansions to be stacked atop on the main board, reducing the lateral area needed. The board is also capable of dual display through two of the three display interface available: LVDS, CRT, and HDMI. For wide temperature range products, please refer to models that have the serial number W1 or W2 in the model name.

Applications

• Gaming & Entertainment
• Industrial Automation
• Digital Signage

Features

• Onboard Intel® Atom™ E3845/ Celeron® J1900, N2807 Processor
• SoC
• DDR3L 1333MHz SoDIMM x 1, Up to 8GB
• LVDS 24-bit Dual Channel
• Dual Display Configuration: VGA+ LVDS, VGA + HDMI or HDMI + LVDS
• SATA 3.0Gb/s x 1, mSATA/ Mini-Card x 1, Micro-SD Slot x 1 (E3800 Series Only)
• USB 3.2 Gen 1 x 1, USB2.0 x 5, RS-232 x 4, RS-232/422/485 x 2 (COM2, COM3)
• Mini-Card x 1, SIM x 1, PCI-104 (Optional)
• 16-bit Digital IO/LPT, SMBus x 1, I2C (Optional)
• Audio 2CH, 2W Audio Amp., TPM (Optional), Touch Controller (Optional)
• 9 ~ 24VDC Wide Range or 12VDC Power Input
• SoC Processor on Solder Side Design

Thông số kỹ thuật

SYSTEM
FORM FACTOR	EPIC
CPU	Intel® Atom™ E3845/Celeron® J1900/N2807
CPU FREQUENCY	Up to 2.0 GHz
CHIPSET	Intel® Atom™/ Celeron® SoC
MEMORY TYPE	DDR3L 1333, SODIMM x 1
MAX. MEMORY CAPACITY	Up to 8GB
BIOS	AMI
WAKE ON LAN	Yes
WATCHDOG TIMER	255 Levels
POWER REQUIREMENT	+12V or 9-24V AT/ATX (default)
POWER SUPPLY TYPE	AT/ ATX
POWER CONSUMPTION (TYPICAL)	11.8W

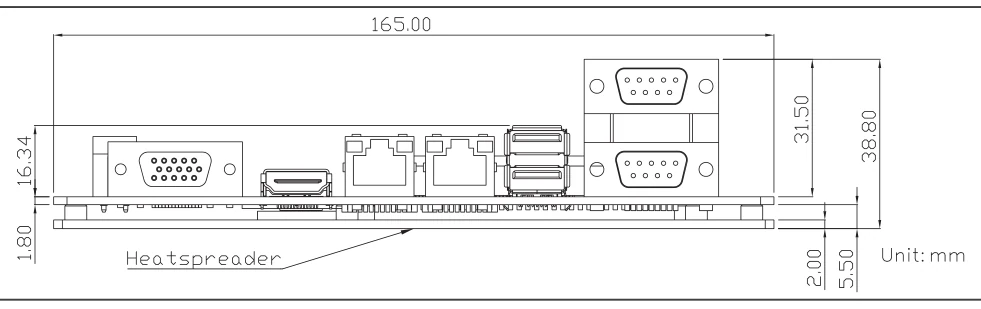

DIMENSION (L X W)	4.53" x 6.50" (115mm x 165mm)
OPERATING TEMPERATURE	32°F ~ 140°F (0°C ~ 60°C)
STORAGE TEMPERATURE	-40°F ~ 185°F (-40°C ~ 85°C)
OPERATING HUMIDITY	0% ~ 90% relative humidity, non-condensing
MTBF (HOURS)	110,000
CERTIFICATION	CE/FCC
DISPLAY
VGA/LCD CONTROLLER	Intel® Atom™/ Celeron® SoC
VIDEO OUTPUT	CRT, LVDS, HDMI
BACKLIGHT INVERTER SUPPLY	Max. 12V
I/O
ETHERNET	Intel® I210 Gigabit Ethernet, RJ-45 x 2
AUDIO	High Definition Audio Interface
USB PORT	USB 2.0 x 5 USB 3.2 Gen 1 x 1
SERIAL PORT	COM1, 4, 5, 6 : RS-232 x 4 COM2, 3 : RS-232/422/485 x 2 (Ring/ +5V/ +12V)
PARALLEL PORT	SPP/EPP/ECP x 1
HDD INTERFACE	SATA 2.0 x 1
FDD INTERFACE	—
SSD	mSATA x 1 (Full Size, co-lay with Mini-Card)
EXPANSION SLOT	Mini-Card x 1, Micro-SD x 1 (Only E3800 series) PCI-104 x 1 (optional) 16-bit DIO or LPT SMbus x 1, I2C x 1 (optional), PS/2 x 1
PWM LCD SUPPORT	—
DIO	16-bit
TPM	Optional
TOUCH	Optional

Ordering Information [EPIC-BT07]

PART NUMBER	EPIC-BT07-A10-0001	EPIC-BT07-A10-0002	EPIC-BT07-A10-0003	EPIC-BT07W2-A10-0001
CPU	Atom™ E3845 (10W)	Celeron® J1900 (10W)	Celeron® N2807 (4.3W)	Atom™ E3845 (10W)
MEMORY	DDR3L (Max. 8GB)	DDR3L (Max. 8GB)	DDR3L (Max. 4GB)	DDR3L (Max. 8GB)
FAN/FANLESS	Heat-Spreader (Heat-sink option)	Heat-Spreader (Heat-sink option)	Heat-Spreader (Heat-sink option)	Heat-Spreader (Heat-sink option)
DISPLAY	VGA+LVDS, VGA+HDMI, LVDS+HDMI	VGA+LVDS, VGA+HDMI, LVDS+HDMI	VGA+LVDS, VGA+HDMI, LVDS+HDMI	VGA+LVDS, VGA+HDMI, LVDS+HDMI
LVDS	24b, 2CH	24b, 2CH	24b, 2CH	24b, 2CH
STORAGE	SATA 2 x 1, mSATA x 1	SATA 2 x 1, mSATA x 1	SATA 2 x 1, mSATA x 1	SATA 2 x 1, mSATA x 1
LAN	GbE x 2	GbE x 2	GbE x 2	GbE x 2
USB	USB 3.2 Gen 1 x 1 USB 2.0 x 5	USB 3.2 Gen 1 x 1 USB 2.0 x 5	USB 3.2 Gen 1 x 1 USB 2.0 x 5	USB 3.2 Gen 1 x 1 USB 2.0 x 5
RS-232	4	4	4	4
RS-232/422/485	2	2	2	2
EXPANSION SLOT	Mini-Card x 1, SIM x 1, PCI-104 x 1, Micro-SD x 1	Mini-Card x 1, SIM x 1	Mini-Card x 1, SIM x 1	Mini-Card x 1, SIM x 1, PCI-104 x 1, Micro-SD x 1
POWER	9-24VDC, AT/ATX	9-24VDC, AT/ATX	9-24VDC, AT/ATX	9-24VDC, AT/ATX
OPERATING TEMP	0°C ~ 60°C	0°C ~ 60°C	0°C ~ 60°C	-40°C ~ 85°C
OTHERS	16CH DIO or LPT, Audio, 2W Amp, PS/2, SMbus	16CH DIO or LPT, Audio, 2W Amp, PS/2, SMbus	16CH DIO or LPT, Audio, 2W Amp, PS/2, SMbus	16CH DIO or LPT, Audio, 2W Amp, PS/2, SMbus

Packing List

• 1709070500: SATA Cable
• 1702150155: SATA Power Cable
• M10BT07010: Heat-Spreader
• EPIC-BT07
